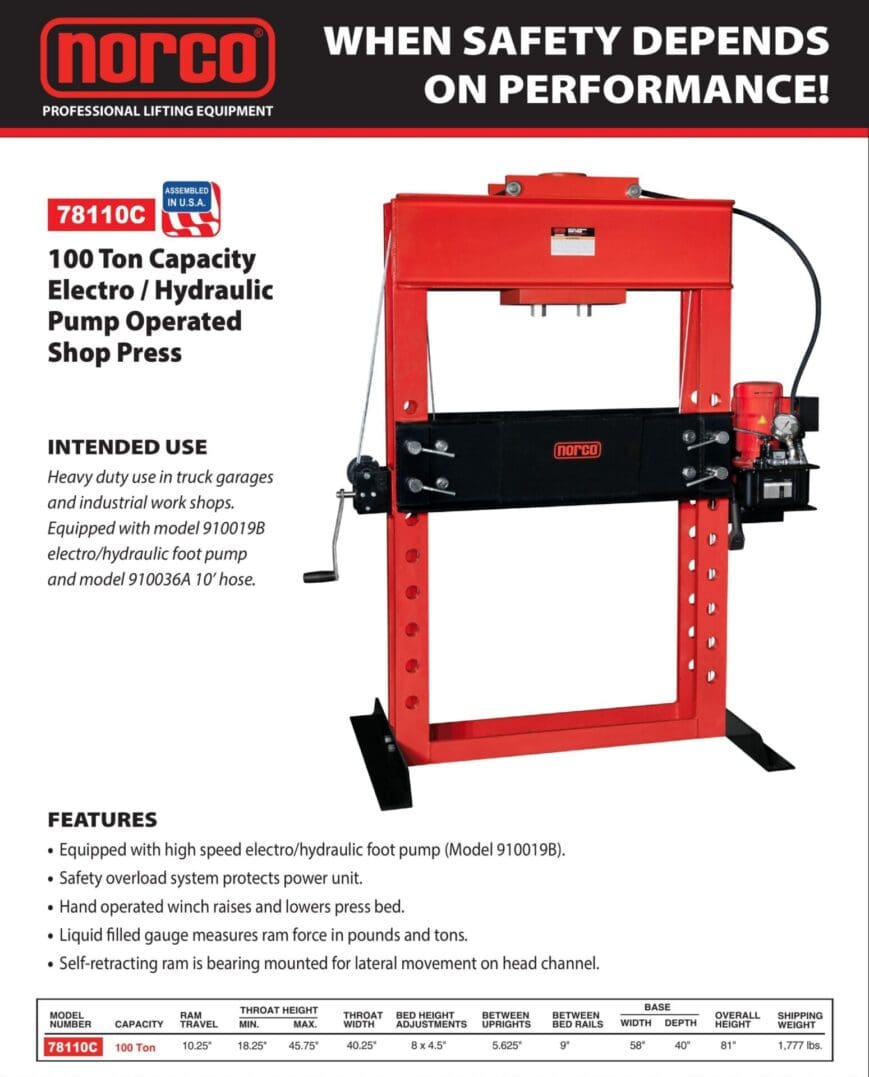

Description 78110C 100 Ton Capacity Electro / Hydraulic Pump Operated Shop Press INTENDED USE: Heavy duty use in truck garages and industrial work shops. Equipped with model 910019B electro/hydraulic foot pump and model 910036A 10’ hose. FEATURES: Welded frame, fully assembled, tested, and ready to put to work. Equipped with high speed 910019B electro/hydraulic pump. Safety overload system protects power unit. Hand operated winch raises and lowers press bed. Liquid filled gauge measures ram force in pounds and tons. Self-retracting ram is bearing mounted for lateral movement on head channel. DIMENSIONS: Ram Travel 10.25″ Min. Throat Height 18.25″ Max. Throat Height 45.75″ Throat Width 40.25″ Bed Height Adj. 8 x 4.5″ Between Uprights 5.625″ Between Bed Rails 9″ Base Width 58″ Base Depth 40″ Overall Height 81″ Shipping Weight 1,777 lbs.
