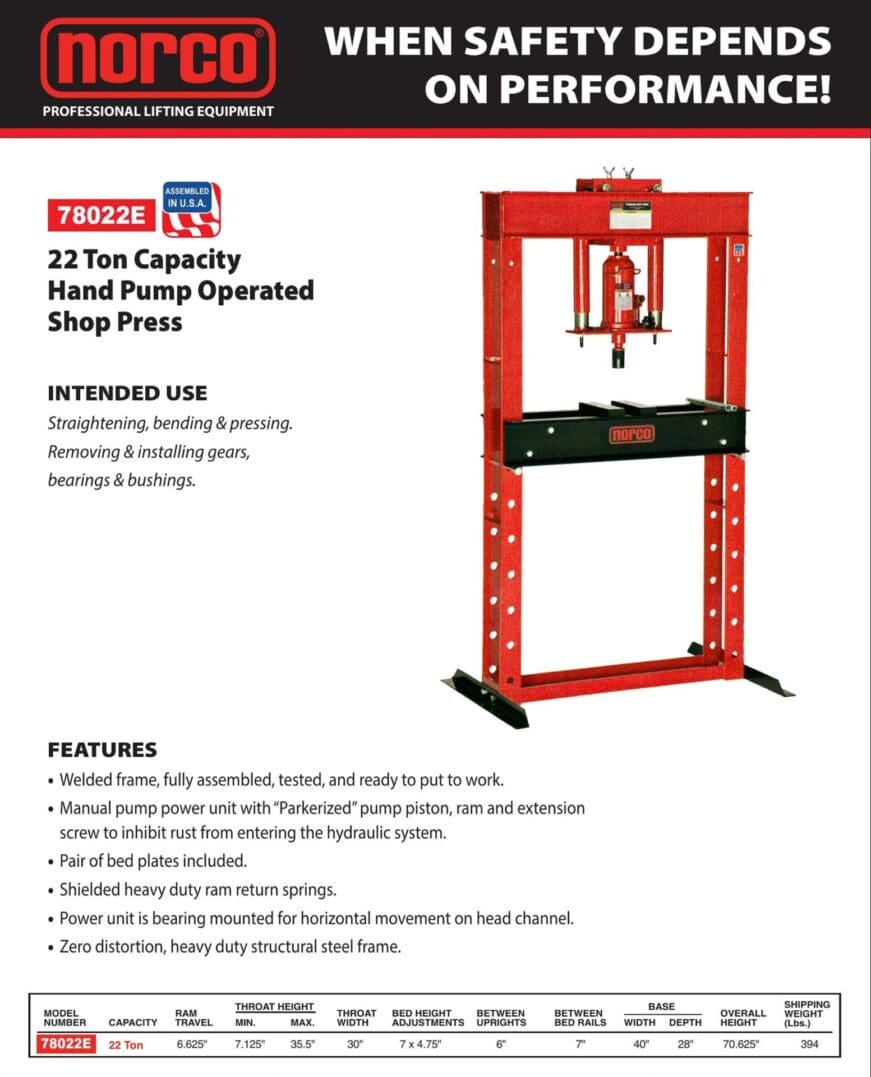

Description 78022E 22 Ton Capacity Hand Pump Operated Shop Press INTENDED USE: Straightening, bending & pressing. Removing & installing gears, bearings & bushings. FEATURES: Welded frame, fully assembled, tested, and ready to put to work. Manual pump power unit with “Parkerized” pump piston, ram and extension screw to inhibit rust from entering the hydraulic system. Pair of bed plates included. Shielded heavy duty ram return springs. Power unit is bearing mounted for horizontal movement on head channel. Zero distortion, heavy duty structural steel frame. DIMENSIONS: Ram Travel 6.625″ Min. Throat Height 7.125″ Max. Throat Height 35.5″ Throat Width 30″ Bed Height Adj. 7 x 4.75″ Between Uprights 6″ Between Bed Rails 7″ Base Width 40″ Base Depth 28″ Overall Height 70.625″ Shipping Weight 394 lbs.
