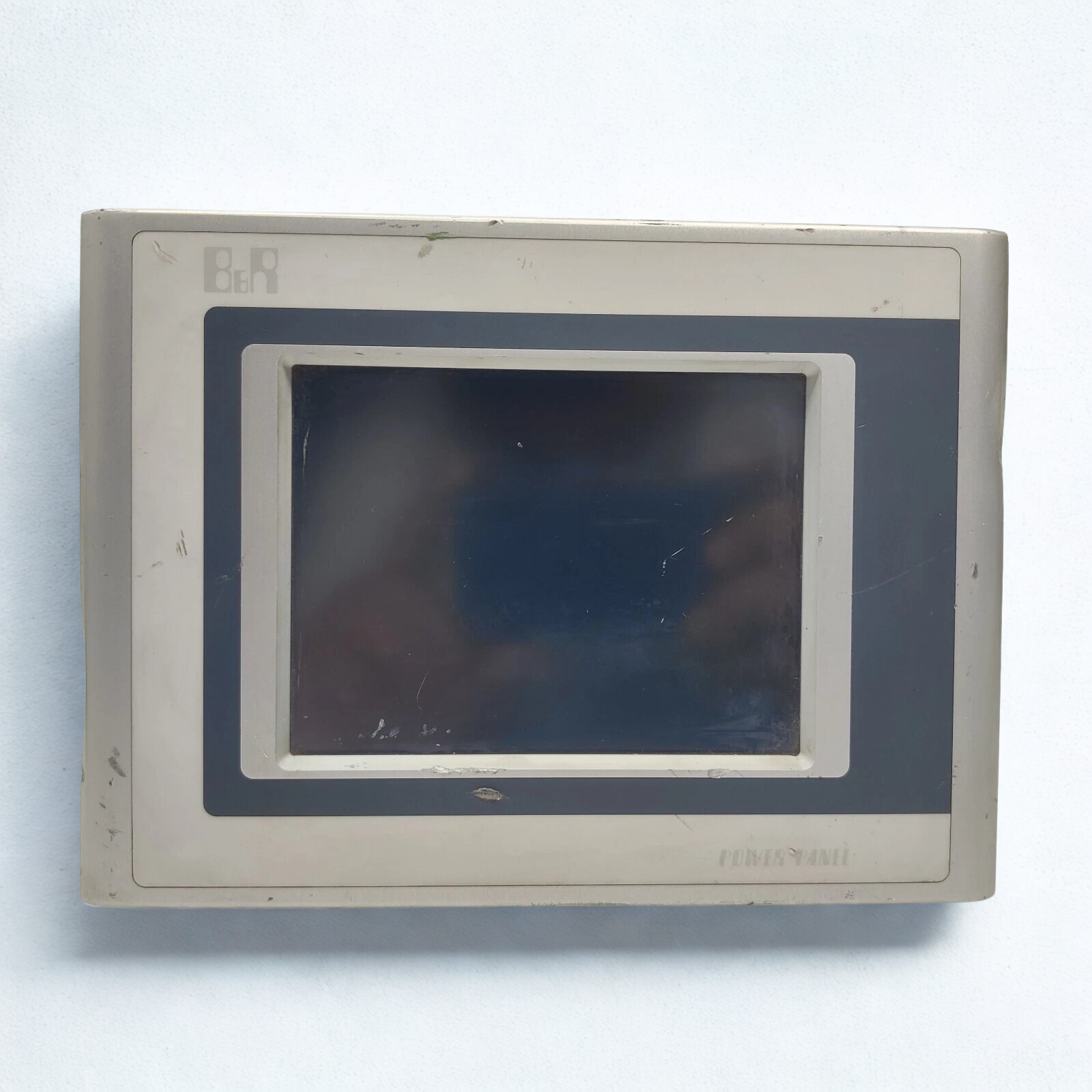

B&R 4PP420.0571-75 5.7″ HMI Power Panel IP65 | Touchscreen HMI The B&R 4PP420.0571-75 Power Panel 400 is a strong 5.7-inch industrial HMI touchscreen that lets you operate, monitor, and visualise machines without any problems in tough production settings. This HMI has a high-resolution QVGA TFT colour display with resistive touch technology and IP65 front protection. It also has a sophisticated Geode LX800 500 MHz processor with 128 MB SDRAM for smooth running performance. It has Ethernet 10/100, two USB ports, RS232 serial, and an aPCI expansion slot, so it may interface to PLCs in a flexible way with the Automation Runtime bootloader. This little panel runs on 24 VDC power, has passive cooling, and comes with a Renata 950 mAh battery that users can replace to back up the real-time clock. It’s perfect for OEM machine builders who need reliable, space-saving operator interfaces. Specifications: B&R 4PP420 0571 75 Parameter Specification Type TFT Color, 262,144 colors Resolution QVGA (320 x 240 pixels) Contrast 350:1 Brightness 500 cd/m² Backlight CCFL, 50,000 h half-brightness Viewing Angles H: ±65°, V: U=65° / D=40° Touch Screen Analog resistive (AMT), Elo controller, 12-bit, up to 80% transmittance B&R 4PP420.0571-75 Datasheet Manual Download manual pdf file
