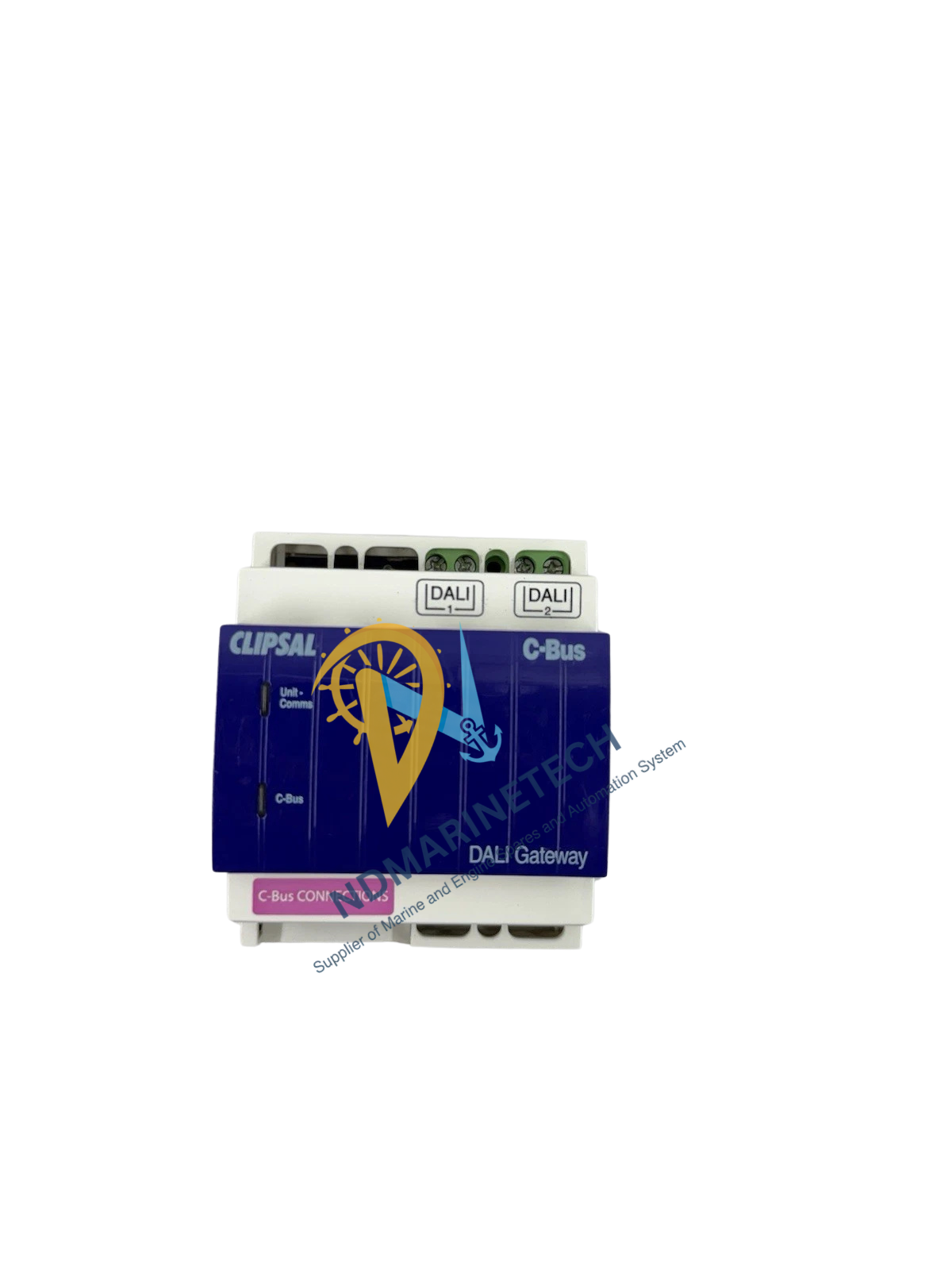

Clipsal 5502DAL C-Bus DALI Gateway | Intelligent Lighting Control The Clipsal 5502DAL C-Bus DALI Gateway is a high-performance bridge that connects a C-Bus control system to DALI (Digital Addressable Lighting Interface) protocols. Designed for DIN rail mounting, this gateway facilitates seamless bidirectional communication, allowing users to control, monitor, and manage up to 64 DALI-compliant ballasts and emergency lighting units from any C-Bus input device. The Clipsal C-Bus ecosystem provides the reliability required for both complex architectural dimming and streamlined commercial lighting maintenance. Attribute Specification C-Bus Supply Voltage 15-36V DC DALI Output Supports up to 64 DALI Ballasts Mounting DIN Rail (4M / 72mm width) Interface C-Bus to DALI (Single Universe) Power Consumption 32mA (C-Bus side) Operating Temperature 0°C to 45°C Communication Protocol C-Bus / DALI 1.0 & 2.0 Compatible Key Functions Seamless Integration: Bridges C-Bus commands directly to DALI ballasts for unified building control. Address Management: Supports the full DALI range of 64 addresses, enabling individual or group lighting control. Bidirectional Monitoring: Real-time status updates from ballasts simplify fault detection and maintenance. Simplified Configuration: Fully programmable via C-Bus Toolkit software for complex scenes and schedules. Compact DIN Rail Design: Occupies only 4 modules of space, ideal for high-density switchboard layouts. Downloads User Manual View PDF File Technical Datasheet View Product Page
